SHARP 30" Microwave Drawer® Oven

19 Ratings

SKU: SMD3077S

$SHARP 30\" Microwave Drawer® Oven$

$2,499.97

Maximum quantity available reached.

View In Showroom

Book an in-store appointment

REVIEWS

(19)

$SHARP 30\" Microwave Drawer® Oven$

SHARP 30" Microwave Drawer® Oven

SKU: SMD3077S

$2,399.97

Product Details

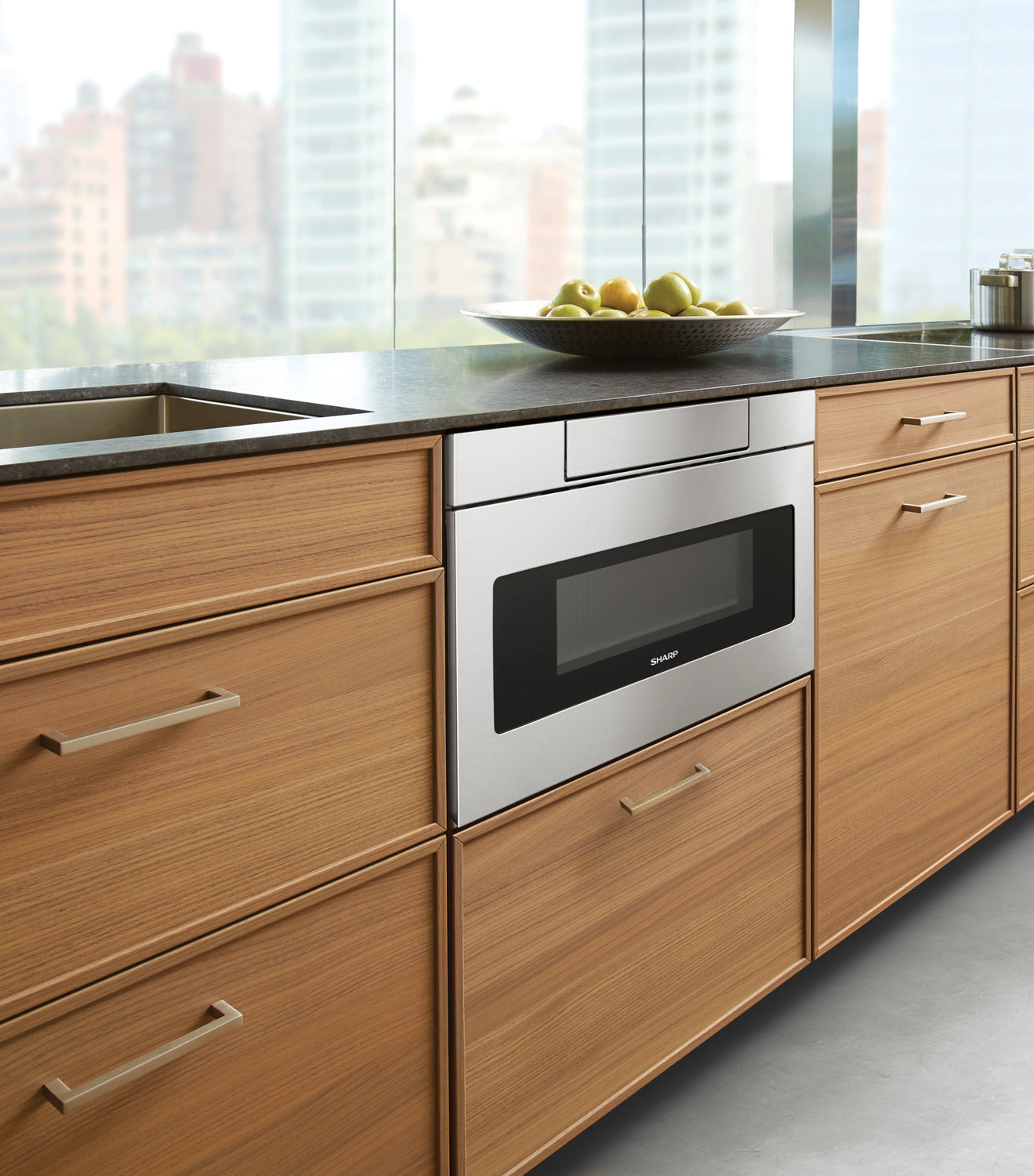

This Microwave Drawer offers flexible placement options below an island, peninsula or standard cabinetry, or can be installed below your wall oven. An easy-to-read display that disappears until you need it. The concealed control panel opens at a 45-degree angle, so it’s easy to read and operate. Easy Touch Automatic Drawer system eases open with a gentle pull or the touch of a button. The even, gliding action and solid construction prevents liquids from spilling during opening and closing.

Dimensions

Width: 30" (76.2 cm) Height: 15.87" (40.3 cm) Depth: 23.01" (58.4 cm)

Shipping Dimensions

Width: 34.8" (88.4 cm) Height: 21.80" (55.4 cm) Depth: 29.30" (74.4 cm)

Weight

91.00 lbs (41.3 kg)

Specifications

Dimensions

Width: 30" (76.2 cm) Height: 15.87" (40.3 cm) Depth: 23.01" (58.4 cm)

Shipping Dimensions

Width: 34.8" (88.4 cm) Height: 21.80" (55.4 cm) Depth: 29.30" (74.4 cm)

Weight

91.00 lbs (41.3 kg)

Unique Features

Sharp’s exclusive AutoTouch™ system allows you to open and close the drawer automatically with one-finger operation.

Design flexibility makes it possible for microwave placement in almost any kitchen plan— it’s a perfect choice for open-plan kitchens, islands & peninsulas.

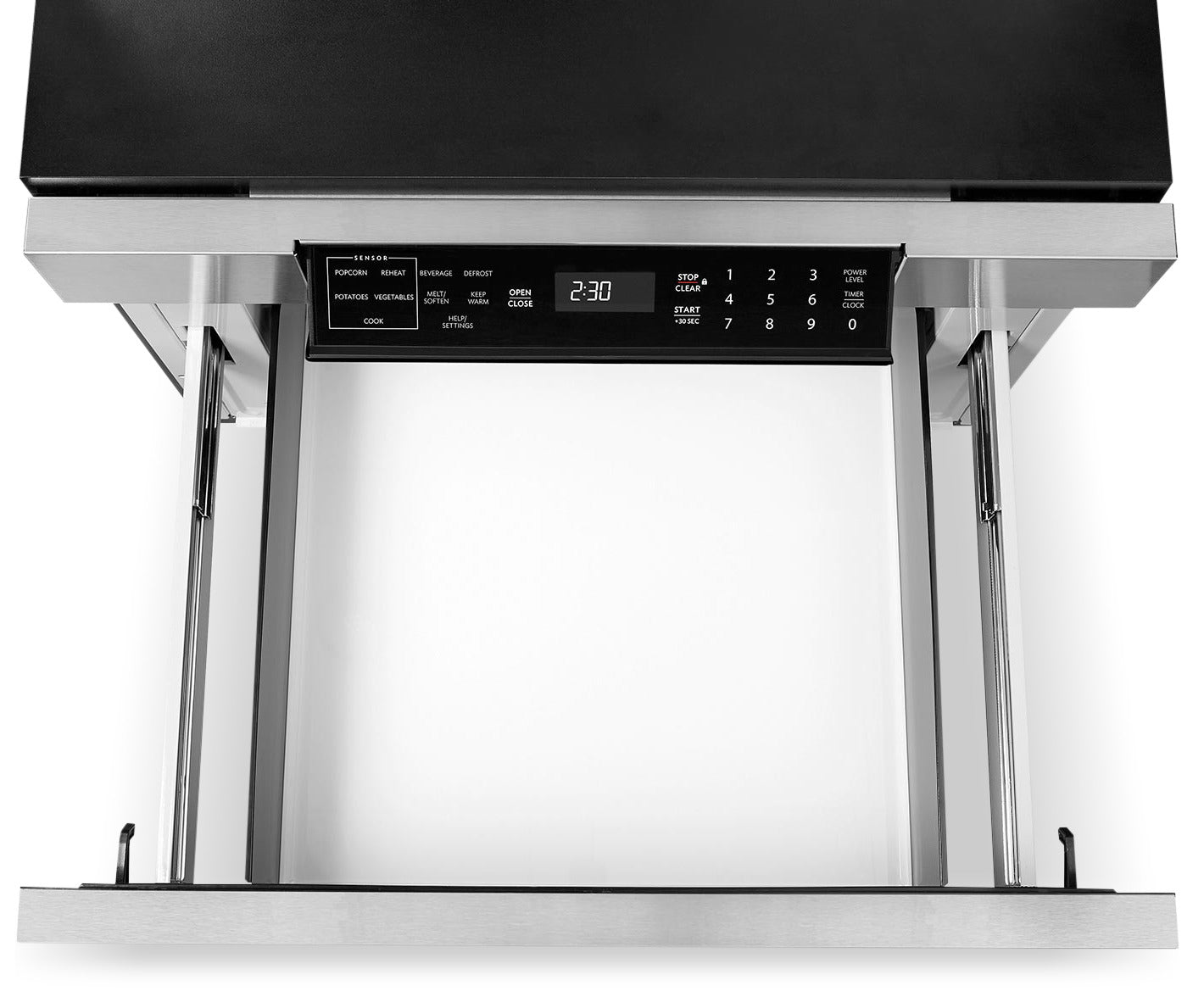

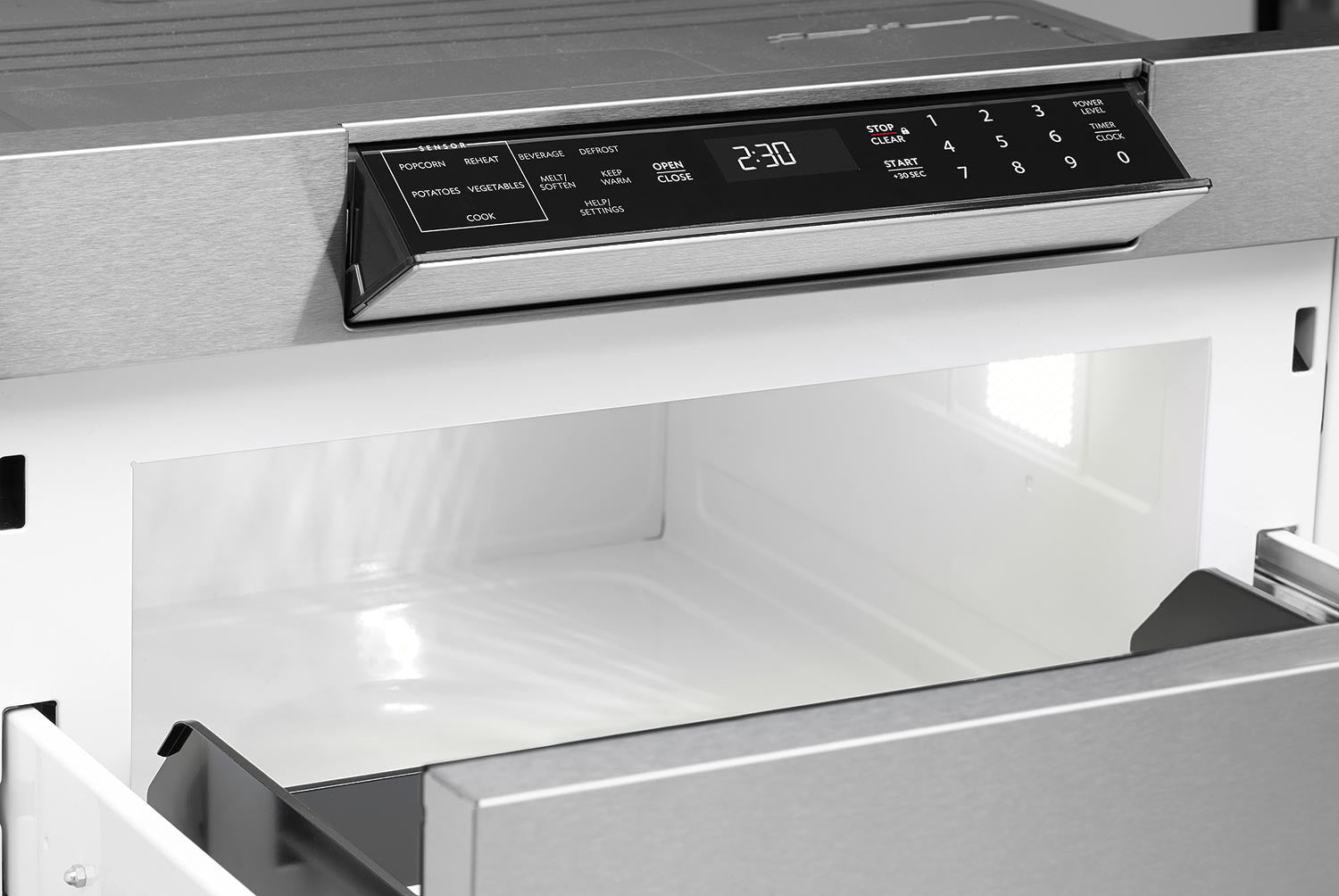

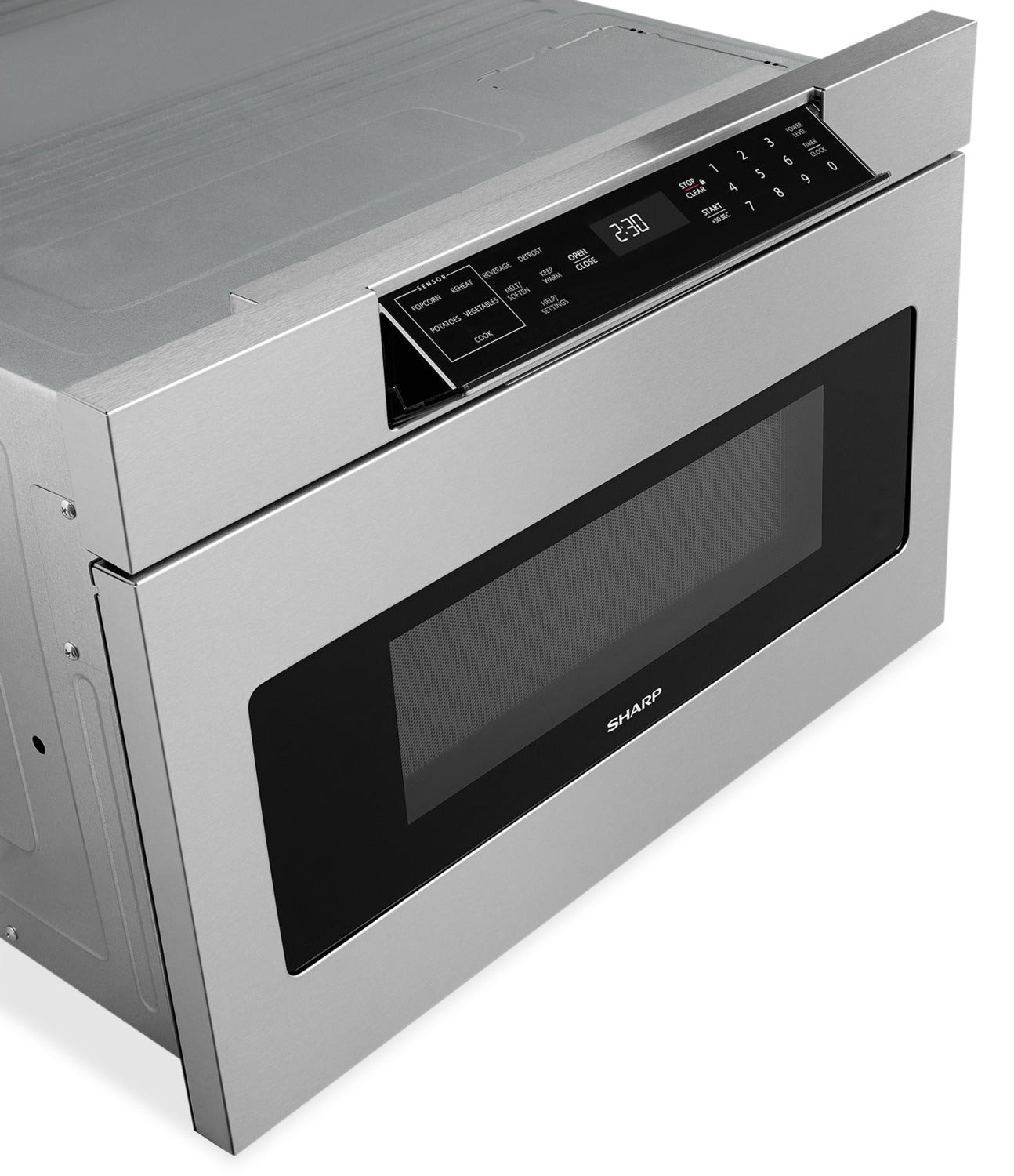

The SMD3077ASC features a hidden control panel which gives a more integrated look and feel within the kitchen. The new tall control panel, angled at 45° degrees, is easy to see, easy to access and easy to use.

Sharp's next generation SMD3077ASC microwave drawer has a simpler and a sleeker design to match other built-in appliances.

Cooking and cleaning are made simpler by putting the microwave at an accessible height. Easily lift hot foods from the drawer and stir dishes without removing them. And, low sides and a virtual Carousel® make cleaning a breeze.

General Details

Appliance Features: Child Lock
Microwave Type: Built-In
Control Panel: HIDDEN PANEL
Display Language(s): ENGLISH
Turntable Type: NO
Energy Consumption: 1.67Kw, 14.5Amps
Power Source: AC 120V, 60Hz
Manufacturer's Warranty: 1 YEAR PARTS & LABOUR
In The Box (what's included): 30" FLUSH MOUNT DEFLECTOR VENT - SKMD30FOAS

Cooking Details

Max Power: 950 W
Cooking Modes: 13
One-Touch Functions: YES
Sensor Cooking: YES
Power Levels: 11

Ventilation Details

Max Power: 950 W

Installation Details

Installation Requirements: Installation required by trained built in appliances installer. Refer to installation instructions provided in the box & Sharp.ca URL site for installation instructions. http://www.sharp.ca/model.aspx?ID=1805&group=md
Assembly Instructions: Click Here

Additional Dimensions:

Turntable Diameter: NA
Cut-out Dimension 28 7/16” x 15 9/16” x 23 1/2”
Product Dimension 30” x 15 7/8” x 23 1/64”
Shipping Dimensions - 34.8” x 29.3” x 21.8”
Shipping Weight - 91 lbs
